CO2 transport requires quantification

Bloggers: Svend Tollak Munkejord, Morten Hammer and Sigurd W. Løvseth

Many things are known about CO₂ transport, e.g., that it is feasible and safe.

However, if full-scale CO₂ capture and storage (CCS) were to be deployed today, conservative design and operational decisions would have to be made due to the lack of quantitative validated models.

Reviewing 386 articles to improve current models

This is one of the main conclusions of a review article we wrote, and which is to be published in Applied Energy. (The interested reader not having access to the journal may read our preprint.) Based on 386 references, the article gives the status for data and models relevant for CO₂ transport, including models handling the properties and transient single- and multiphase flow of CO₂-rich mixtures.

Current models need improvement with respect to both fluid flow and thermophysical properties.

Current models need improvement with respect to both fluid flow and thermophysical properties. This is highly relevant also for the whole CCS chain. The future CCS system not only needs to be safe, but also efficient with respect to energy and cost. Then engineers will need modelling tools to be able to design and operate the system in an optimal way.

What safe and cost efficient CO₂ transport needs

The knowledge gaps should be addressed in parallel with practical CCS deployment. Here are some of the subjects we found where research is needed.

• The development of accurate (and practical) property models for CO₂-rich mixtures valid in the pressure, temperature and composition ranges relevant for CCS. To do this, experimental data are needed. Today, for many of the relevant impurities, the available data are scarce, inaccurate, or both.
• Fiscal metering will be needed in order to facilitate government control and transactions in a future CCS market and the lack of accurate property models could have large cost impacts.
• Data and models for the depressurization of pipes and vessels are needed for safe and efficient design and operation. Since these processes are often fast, the different phases (gas, liquid, solid) are not always in equilibrium.
• Models able to predict running-ductile fracture in CO₂-transport pipelines are needed to ensure safety while avoiding costly full-scale experiments in each case.
• Regarding ship-transport of CO₂, one of the main challenges appears to be the optimal chain design. It has to include the liquefaction, conditioning and possible processing at the injection site. Issues like well integrity and the response of the CO₂ reservoir should also be considered. This will require good knowledge of the relevant CO₂-rich properties, as well as flow in the well, the interaction of brine and CO₂, etc.

Must account for the formation of solid CO₂

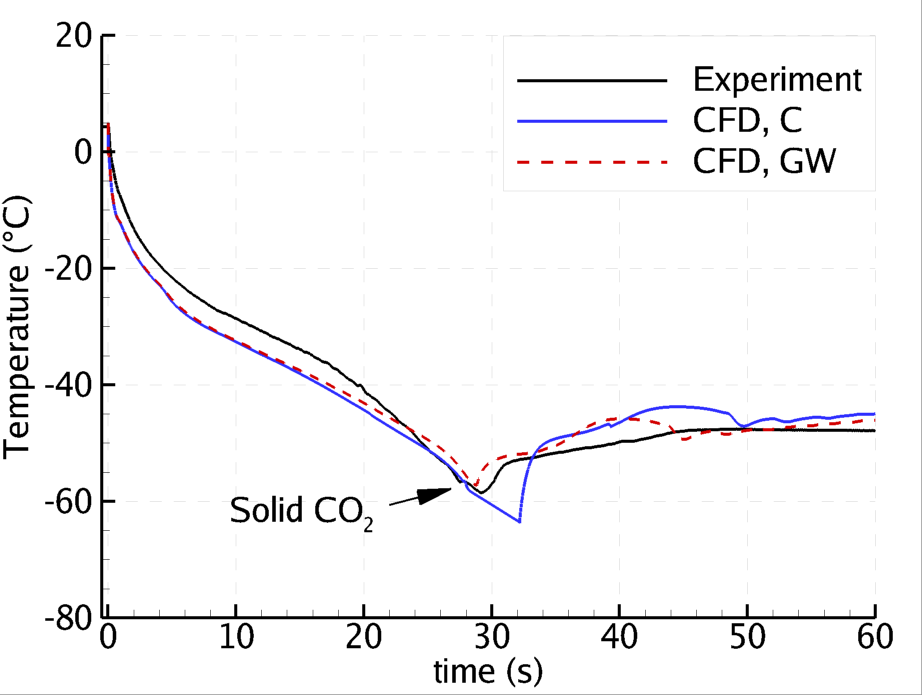

In the article, we could not resist performing some calculations ourselves. We studied one of the pipe-depressurization experiments performed by DNV GL. In these experiments, a straight pipe was filled with CO₂. At a certain time, one end was opened to the atmosphere, and pressure and temperature were recorded at various positions inside the pipe. This can be seen in Figures 1 and 2, where we have plotted experimental data along with calculations from our 1D two- and three-phase CFD model. The black line represents the experimental data. The blue line and the red dashed line represent our CFD calculations, with the only difference being the in-tube heat-transfer correlation. (‘C’ denotes Colburn and ‘GW’ denotes Gungor–Winterton). Close to the outlet (Figure 1) one can see that the use of the Gungor–Winterton correlation gives the best result. In particular, the minimum point is quite well captured. This is the point where there is no solid or liquid CO₂ left, and the flow is gas-only.

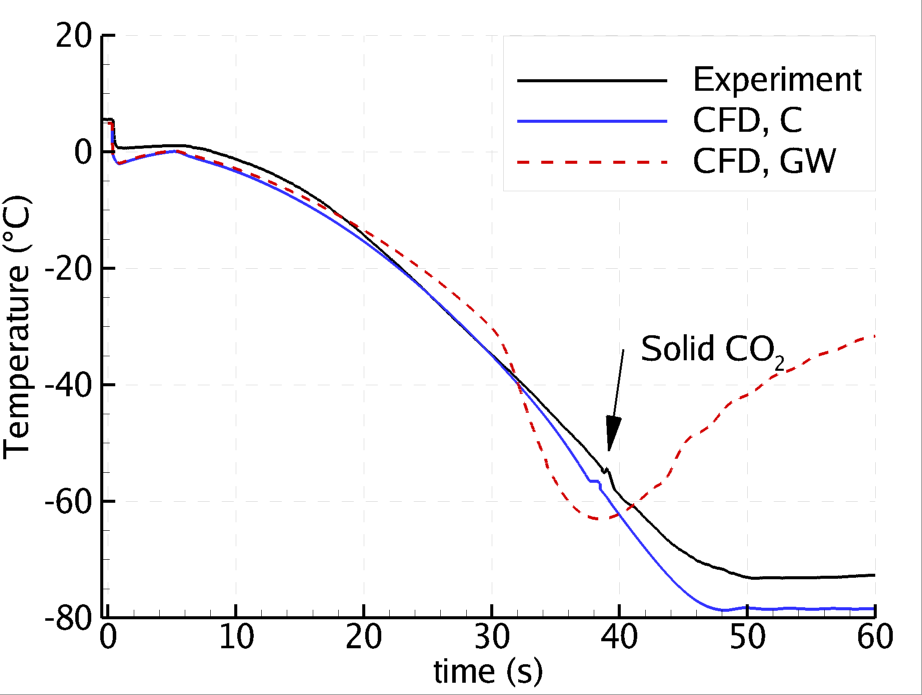

Near the closed end, the conclusion is the opposite. Here, the Colburn heat-transfer correlation  gives far better results. The reason for the large difference is the occurrence of solid CO₂ (dry ice). This can be seen as a kink in the experimental data (and in our calculation) at time about 40 s. The Gungor–Winterton correlation gives too high heat transfer, such that the CO₂ does not enter into the area where solid CO₂ is formed. As can be seen, the solid CO₂ contributes to keeping the temperature low.

• Find out more about SINTEFs’ expertise on CO₂ transport.

This calculation shows that CO₂ flow and depressurization models must be able to account for the formation of solid CO₂. Second, it is important to model the heat transfer through the pipe wall to the surroundings.

This work was performed in the BIGCCS International CCS Research Centre.

Do you want to know more about our research on CO₂ transport – read these blogs:

• Gas or liquid: new CO₂ mixture property knowledge needed for efficient and robust CCS
• Simulating running ductile fracture in CO₂ pipelines
• Flow of CO₂ in pipes
• Why models are important for safe and efficient CO₂ transport
